What is a tension clamp?

A tension clamp is a mechanical device used to secure and hold cables, wires, or rods under tension. These clamps are widely used in various industries, including construction, telecommunications, and electrical engineering, to ensure the stability and reliability of suspended cables and wires. Here’s an overview of tension clamps:

Types of Tension Clamps

1. Suspension Clamps:

   • Use: Primarily used for supporting and suspending cables, especially in overhead power lines.
   • Design: They typically have a body and a keeper that hold the cable in place without causing damage to it.

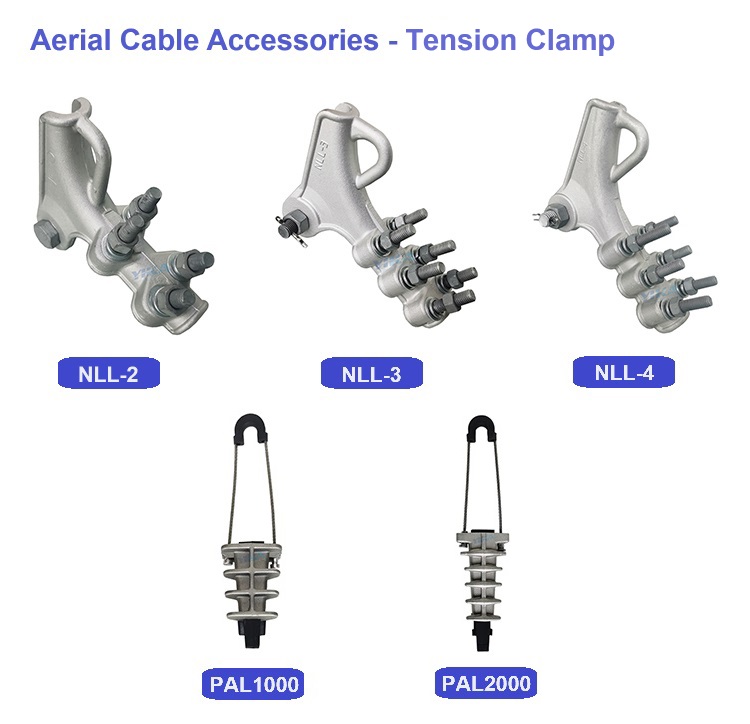

2. Dead-End Clamps (Tension Clamps):

   • Use: Designed to anchor the end of a cable run. They grip the cable securely to withstand high tension.
   • Design: These clamps often include a wedge or bolted type mechanism to grip the cable tightly.

3. Automatic Tension Clamps:

   • Use: Employed in situations where automatic tensioning is required.
   • Design: They automatically adjust to maintain the appropriate tension in the cable.

Materials

• Galvanized Steel: Offers high strength and durability, making it suitable for outdoor use.
• Aluminum Alloy: Lightweight and resistant to corrosion, often used in electrical and telecommunication lines.
• Composite Materials: Provide a balance of strength, durability, and corrosion resistance.

Applications

1. Overhead Power Lines:

   • Tension clamps secure electrical conductors, ensuring they are held tightly and do not sag.

2. Telecommunication Lines:

   • Used to suspend and tension optical fiber cables, maintaining network reliability.

3. Construction:

   • Employed in tensioning steel cables used in various structural applications, such as bridges and towers.

Advantages

• High Tensile Strength: Capable of withstanding significant forces without slipping or causing damage to the cable.
• Corrosion Resistance: Suitable for use in harsh environmental conditions.
• Ease of Installation: Designed for quick and secure installation, often without the need for specialized tools.

Installation Considerations

• Proper Alignment: Ensures that the cable is not subjected to undue stress or bending.
• Secure Fastening: The clamp must be securely fastened to prevent slipping or loosening over time.
• Regular Inspection: Periodic inspection and maintenance ensure the clamp continues to function effectively and safely.

Safety

• Proper Sizing: Ensure the clamp is appropriately sized for the cable diameter and type.
• Load Limits: Never exceed the manufacturer's specified load limits to avoid failure.
• Environmental Factors: Consider the impact of environmental factors such as temperature and humidity on the clamp's material and performance.

In summary, tension clamps are critical components in many engineering and construction applications, providing secure and reliable tensioning for cables and wires. Their selection, installation, and maintenance are crucial for the safety and longevity of the systems they support.
